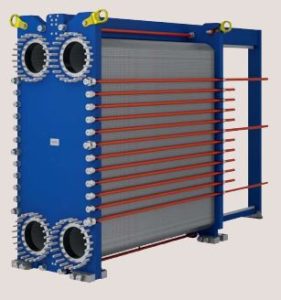

Alfa Laval IndustrialLine T45 Gasketed Plate-and-Frame Heat Exchanger

Alfa Laval Industrial line is a wide product range that is used in virtually all types of industry. Designed for high throughput, this model delivers excellent thermal performance. A large selection of plate and gasket types is available.

Applications

Biotech and Pharmaceutical
Chemicals
Energy and Utilities
Food and Beverages
Home and Personal care
HVAC and Refrigeration
Machinery and Manufacturing
Marine and Transportation
Mining, Minerals and Pigments
Pulp and Paper
Semiconductor and Electronics
Steel
Water and Waste treatment

Benefits

High energy efficiency – low operating cost
Flexible configuration – heat transfer area can be modified
Easy to install – compact design
High serviceability – easy to open for inspection and cleaning and easy to clean by CIP
Access to Alfa Laval’s global service network

Features

Every detail is carefully designed to ensure optimal performance, maximum uptime and easy maintenance. Selection of available features:

5-point alignment system
Reinforced hanger
Chocolate pattern distribution area
Glued gasket
Base-ad gasket
Leak chamber
Bearing box
Fixed bolt head
Key hole bolt opening
Lifting lug
Lining
Lock washer
Pressure plate roller
Swing feet
Tightening bolt cover

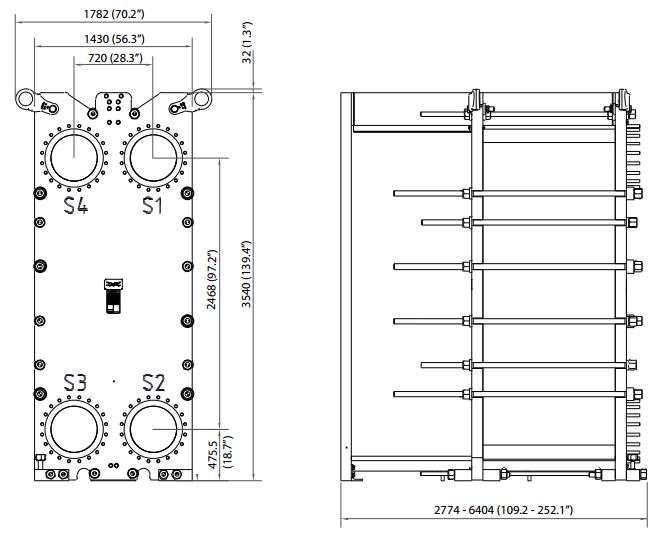

Technical data

Plates
Name: T45-M
Type: Single plate
Free channel, mm (inches): 4.0 (0.16)

Materials
Heat transfer plates: 316/316L, 254
Ti
Field gaskets: NBR, EPDM
Flange connections: Carbon steel, Metal lined: stainless steel Alloy 316, Alloy 254, titanium
Frame and pressure plate: Carbon steel, epoxy painted

Other materials may be available on request. All option combinations may not be configurable.

Operational data

Frame, PV-code: FM, pvcALS
Max. design pressure (barg/psig): 10.0/145
Max. design temperature (°C/°F): 180/356

Frame, PV-code: FG, pvcALS
Max. design pressure (barg/psig): 16.0/232
Max. design temperature (°C/°F): 150/302

Frame, PV-code: FG, ASME
Max. design pressure (barg/psig): 10.3/150
Max. design temperature (°C/°F): 250/482

Frame, PV-code: FG, PED
Max. design pressure (barg/psig): 16.0/232
Max. design temperature (°C/°F): 150/302

Frame, PV-code: FD, ASME
Max. design pressure (barg/psig): 17.2/250
Max. design temperature (°C/°F): 250/482

Extended pressure and temperature rating may be available on request.

Flange connections
FM, pvcALS: EN 1092-1 DN450 PN10
ASME B16.5 Class 150 NPS 18
JIS B2220 10K 450A
FG, pvcALS: EN 1092-1 DN450 PN16
ASME B16.5 Class 150 NPS 18
JIS B2220 16K 450A
FG, ASME: ASME B16.5 Class150 NPS 18
FG, PED: EN 1092-1 DN450 PN16
ASME B16.5 Class 150 NPS 18
FD, ASME: ASME B16.5 Class 300 NPS 18
