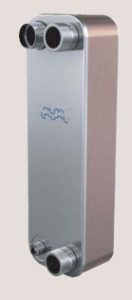

Alfa Laval AC Brazed PHE AC220EQ / ACH220EQ / ACP220EQ

Alfa Laval AC brazed plate heat exchangers provide efficient heat transfer with a small footprint. They are specifically designed to work in air conditioning and refrigeration applications as evaporators and condensers in chillers and heat pumps.


  • Evaporator
  • Cascade systems


  • Compact
  • Easy to install
  • Self-cleaning
  • Low level of service and maintenance is required
  • All units are pressure and leak tested
  • Gasket free


The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life. Different pressure ratings are available for different needs. Asymmetric channels provide optimal efficiency in the most compact design.

This results in low refrigerant charge or lower pressure drop on the water or brine side, reducing the COfootprint. The integrated distribution system ensures an even distribution of the refrigerant throughout the plate package. Based on standard components and a modular concept, each unit is custom-built to meet the specific requirements of each individual installation. Suitable with most HFC, HFO and natural refrigerants.

Examples of connections

Technical Data

Standard materials
Cover plates: Stainless steel
Connections: Stainless steel
Plates: Stainless steel
Brazing filler: Copper

Dimensions and weight1
A measure (mm): 16 + (2.07 * n)
A measure (inches): 0.63 + (0.08 * n)
Weight (kg)2: 4.82 + (0.35 * n)
Weight (lb)2: 10.63 + (0.77 * n)
1. n = number of plates
2. Excluding connections

Standard data
Volume per channel, litres (gal): M, L: 0.18 (0.046)
AH, AM (S1-S2): 0.20 (0.052)
AH, AM (S3-S4): 0.16 (0.041)

Max. particle size, mm (inch): 1 (0.039)
Max. flowrate1 m
3/h (gpm): 51 (224)
Flow direction: Parallel
Min. number of plates: 10
Max. number of plates: 300
1. Water at 5 m/s (16.4 ft/s) (connection velocity)

Dimensional drawing
Measurements in mm (inches)
