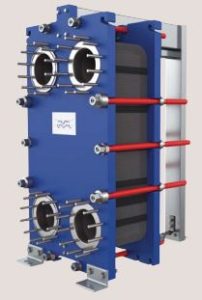

Alfa Laval IndustrialLine TK20 W Gasketed Plate-and-Frame Heat Exchanger
Alfa Laval Industrial semi-welded line is used when gaskets are not suitable for one of the process media. The semi-welded line can also withstand a higher design pressure compared to fully gasketed plate-and-frame heat exchangers. The relatively short plate makes this model suitable for duties with short temperature programs and when a low pressure drop is appreciated. A large range of plate and gasket types is available.
Applications
- Chemicals
- Energy and Utilities
- Food and Beverages
- HVAC and Refrigeration
- Marine and Transportation
- Mining, Minerals and Pigments
- Pulp and Paper
- Steel
- Water and Waste treatment
Benefits
- High energy efficiency – low operating cost
- Flexible configuration – heat transfer area can be modified
- Easy to install – compact design
- High serviceability – easy to open for inspection and cleaning and easy to clean by CIP
- Access to Alfa Laval’s global service network
Features
Every detail is carefully designed to ensure optimal performance, maximum uptime and easy maintenance. Selection of available features:
- 5-point alignment system
- CurveFlowTM distribution area
- ClipGripTM gasket
- Leak chamber
- RefTightTM sealing system
- Bearing box
- Fixed bolt head
- Key hole bolt opening
- Lifting lug
- Lining
- Lock washer
- Pressure plate roller
- Swing feet
- Tightening bolt cover
- Optimized Alfa Laval drain connection
Technical data
Plates
Name: TK20-BW
Type: Semi-welded
Free channel, mm (inches): 2.5 (0.098)
Materials
Heat transfer plates: 304/304L, 316/316L, 254
Ti
Field gaskets: NBR, EPDM, FKM
NBR, EPDM, CR
Ring gaskets: NBR, EPDM, FEPM, CR
Flange connections: Metal lined: stainless steel, Alloy 254, titanium
Frame and pressure plate: Carbon steel, epoxy painted
Other materials may be available on request. All option combinations may not be configurable.
Operational data
Frame, PV-code: FG, PED
Max. design pressure (barg/psig): 16.0/232
Max. design temperature (°C/°F): 50/122
Frame, PV-code: FD, pvcALS
Max. design pressure (barg/psig): 25.0/363
Max. design temperature (°C/°F): 150/302
Frame, PV-code: FD, ASME
Max. design pressure (barg/psig): 20.7/300
Max. design temperature (°C/°F): 150/302
Frame, PV-code: FD, PED
Max. design pressure (barg/psig): 25.0/363
Max. design temperature (°C/°F): 150/302
Frame, PV-code: FX, ASME
Max. design pressure (barg/psig): 62.1/900
Max. design temperature (°C/°F): 150/302
Frame, PV-code: FX, PED
Max. design pressure (barg/psig): 63.0/914
Max. design temperature (°C/°F): 150/302
Extended pressure and temperature rating may be available on request.
Flange connections
FG, pvcALS: EN 1092-1 DN150/DN200 PN16
ASME B16.5 Class 150 NPS 6/NPS8
JIS B2220 16K 200A
FG, PED: EN 1092-1 DN150/DN200 PN16
ASME B16.5 Class 150 NPS 6/NPS 8
FD, pvcALS: EN 1092-1 DN150/DN200 PN25
ASME B16.5 Class 300 NPS 6/NPS 8
JIS B2220 20K 200A
FD, ASME: ASME B16.5 Class 300 NPS 6/NPS 8
FD, PED: EN 1092-1 DN150/DN200 PN25
ASME B16.5 Class 300 NPS 6/NPS 8
FX, ASME: ASME B16.5 Class 150 NPS 8
ASME B16.5 Class 900 NPS 6
FX, PED: EN 1092-1 DN200 PN16
EN 1092-1 DN200 PN25
EN 1092-1 DN150 PN63
ASME B16.5 Class 150 NPS 8
ASME B16.5 Class 900 NPS 6
Standard EN1092-1 corresponds to GOST 12815-80 and GB/T 9115.
Dimensional drawing
Measurements mm (inches)
Type: TK20-FG
H: 1525 (60.0”)
W: 740 (29.1”)
h: 301 (11.9″)
Type: TK20-FD
H: 1525 (60.0”)
W: 785 (30.9”)
h: 301 (11.9″)
Type: TK20-FX
H: 1560 (61.4”)
W: 900 (35.4”)
h: 331 (13.0″)
The number of tightening bolts may vary depending on pressure rating.
