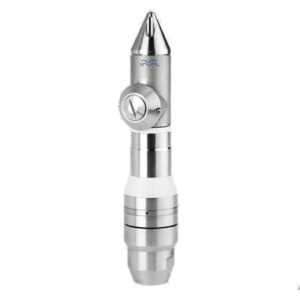

Alfa Laval Toftejorg Rotary Jet Head GJ 7 (Gamajet)
Application
The smallest rotary impingement tank cleaning device, the Alfa Laval GJ 7 easily fits through a 3.8 cm access hole. Capable of operating at both high and low pressures, this device delivers 2.27 kg. of cleaning force at .76 m. The Alfa Laval GJ 7 offers quick and easy cleaning of barrels, drums, and other small vessels in a wide variety of industries. The device is part of the world-renowned Gamajet range of high impact tank cleaning devices.
Technical Data
Lubricant . . . . . . . . . . . . . . . . . . . Food grade

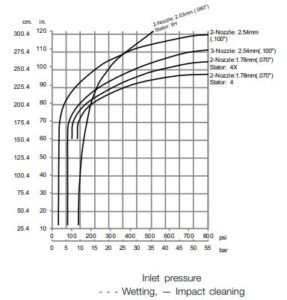

Max. throw length . . . . . . . . . . . . . 2 – 2.5 m
Pressure
Working pressure . . . . . . . . . . . . . . 3.5 – 83 bar
Recommended pressure . . . . . . . . . 5.5 – 55 bar
Physical Data
Materials: 1.4404 (316L), PTFE, EPDM (FKM and FFKM available)
Temperature
Max. working temperature . . . . . . . . 95°C
Max. ambient temperature . . . . . . . . 140°C
Weight . . . . . . . . . . . . . . . . . . . . . 6.8 kg.
Connections
Standard thread . . . . . . . . . . . . . . . ½” NPT, ½” BSP

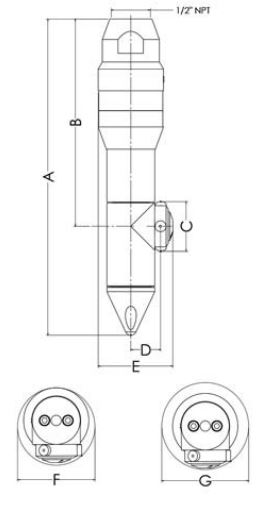

Dimensions (mm)(in)
A | B | C | D | E | F | G |
176 | 115 | 27 | 17 | 42 | 43 | 48 |
