Pentair Südmo Stainless Steel Ball Valves F262

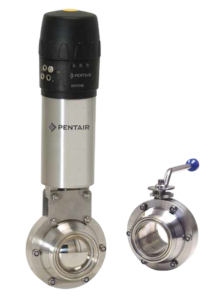

Pentair Stainless Steel Ball Valves F262 DN 25 (1.0’’) – 100 (4.0’’) are used in many applications of dairy, brewery, winery, food and beverage industries. Our comprehensive valve line features both manual and pneumatic drives and a variety of options that allow monitoring and control through a PLC control system.

Benefits

  • Field replaceable seats and seals
  • Adjustable gland when actuator is fitted
  • Full range of accessories
  • High quality precision engineered for long life and low maintenance
  • Very high cycling capability

Features

  • Quarter turn operation
  • Full bore
  • Exterior and interior surfaces are machined to hygienic standards
  • Bubble tight shut-off for reliability
  • A range of end connections including BSM/RJT and IDF
  • Two piece construction
  • Precision 316 S/S ball and stem as standard
  • PTFE seats and seals as standard

Functional description

Pentair Stainless Steel Ball Valves can be operated either by a manual handle or remotely controlled by an automated pneumatic actuator. The manual version comes standard with a dual position handle notch plate. The automated version valve can be supplied in three configurations, Spring to Close (STC), Spring to Open (STO) or Double acting (DA).

Fields of application

An universal stainless steel ball valve for isolation and control of chemical and other process fluids in the food, dairy, brewing, pharmaceutical and beverage industries. Our ball valves are designed to be easily automated with the Pentair Vertical SS Actuator, combined with the Easymind Electronic Control Top. Other automation options can also be made with other Pentair rack and pinion actuators upon special request.

Technical Data

Size range:                                 DN 25 (1.0″) – 100 (4.0″)

Pressure rating:                        DN 25 – 65 = 10bar. DN 80 – 100 = 6bar.

Temperature rating:                -30°C to 220°C

End connections:                     BSM (RJT) (std). IDF (ISO 2853, BS 4825). Butt Weld (refer factory). Clamp Ends (refer factory).

Optional Valve Variants

  • F262C CIP Ball Valve automated: For automated cleaning/flushing of the body cavity
  • F262 Ball Valve with lockable handle: For securing valve operation
  • F262C FLS Ball Valve with flushing ports: For a flushable feature on manual valves

Technical Specification

Pentair Keystone Stainless Steel Ball Valves F262 Technical Specification

Parts List

No. Description Material Standard
1 Body 316L S/S ASTM A276/ASTM A743 8M
2 Ball 316L S/S ASTM A276
3 Seat PTFE
Glass reinforced PTF

4 Body seal PTFE
5 Stem seal PTFE
6 Gland packing PTFE
7 Stem 316L S/S ASTM A276
8 Gland follower 303 S/S
9 Handle 304 S/S ASTM A276
10 Spacer 304 S/S
11 Handle screw 304 S/S
12 Body screw 304 S/S ASTM A276
13 Gland retaining screw 304 S/S ASTM A276

Pentair Keystone Stainless Steel Ball Valves F262 Technical Specification 2

Dimensions (mm)

Valve size   Stem connection Mass (kg) Kv at
full open
Metric Inch OD A B C C1 D (BSM) D (CLP) D (BW) D1 E F Inches mm
25 1″ 22 75 60 108 70 76 70 112 38 145 7/16 x 7/16 11.1 x 11.1 1.3 39
40 1.5″ 35 89 68 119 76 87 76 118 45 145 7/16 x 7/16 11.1 x 11.1 1.7 95
50 2″ 47 106 77 127 85 100 85 129 53 145 7/16 x 7/16 11.1 x 11.1 2.5 156
65 2.5″ 60 129 86 135 99 124 99 143 65 176 9/16 x 9/16 14.3 x 14.3 4.0 272
80 3″ 73 152 96 147 118 136 136 162 76 176 9/16 x 9/16 14.3 x 14.3 6.0 454
100 4″ 97 188 113 161 152 159 159 196 94 206 9/16 x 9/16 14.3 x 14.3 11.0 852

Notes

C = The center line to top of mounting surface when actuated.
C1 = The valve center line to top of manual valve.
D = The overall length for bare valves.
D1 = The overall length for BSM ended valves with union fitted to both ends.
K
v = The volume of water in m3/hr that will pass through a given valve opening at a pressure drop of 1bar (100kPa) at 20°C.
C
v = 1.155 Kv.
Dimensions are nominal to ±1mm.

Pressure/Temperature Rating

Pentair Keystone Stainless Steel Ball Valves F262 Pressure - Temperature Rating

PTFE seated
1000kPa (10bar) at 150°C: DN 25-65
600kPa (6bar) at 210°C: DN 80-100

RTFE seated (glass reinforced PTFE)
1000kPa (10bar) at 200°C DN 25-65
600kPa (6bar) at 180°C DN 80-100

Torque Values (Nm)

Valve Size mm Light Service Nm Severe Service Nm
25 10 20
40 13 25
50 15 30
65 20 40
80 25 50
100 30 60

Selection Guide

Pentair Keystone Stainless Steel Ball Valves F262 Selection Guide
