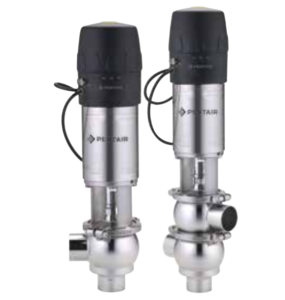

Pentair Südmo Single Seat Valves F267J/F268J

Pentair Hygienic Single Seat Valves F267J/F268J are used to control process or CIP fluids. Single Seat Valve F267J+ for isolating and Single Seat Valve F268J+ for diverting or converging flows. Pentair offers a variety of options that allow monitoring and control of the valves through a PLC control system via the Easymind control unit.

Benefits

  • Free draining design, eliminates product puddling and air pockets.
  • Smooth ball shaped bodies, reduces turbulence and improves flow.
  • Smooth internal surfaces for ease of cleaning.
  • Maintenance friendly design.
  • Compact, lightweight design.

Features:

  • Product contact parts are manufactured from high quality 316L stainless steel bar.
  • Heavy walled body construction.
  • Semi bright external surface finish.
  • Heavy duty cast body clamps (bolted type).
  • Various sealing options available.
  • Metal plug stop, protects seat seals from wear or damage.
  • A wide choice of port configurations are available.
  • Resilient seated for positive isolation.
  • Free draining design, eliminates product puddling and air pockets.
  • Smooth ball shaped bodies, reduces turbulence and improves flow.
  • Smooth internal surfaces for ease of cleaning.
  • Maintenance friendly design.
  • Reversible actuator.
  • Clamped body style offers full 360° orientation of body ports.
  • Butt weld end connections.

Options

  • Mirror polished internals
  • Clamp and thread end connections
  • Manual operating device
  • 3-Position actuator
  • Booster actuator
  • Control head or feed back unit
  • Quick release body clamps
Pentair Keystone Single Seat Valves F267J - F268J

Functional description

The Pentair Single Seat Valves are operated by compressed air, via a linear pneumatic actuator, that can be supplied with or without spring return. The at rest position of the valve, although normally closed (down position), can also be provided in the normally open (up position), this is determined by the actuator mode being either Spring Extend (SE) or Spring Retract (SR) as selected at time of order.

The mode can also be easily changed on site by simply inverting the actuator assembly. When air pressure is applied to the cylinder, the valve plug moves through its entire stroke changing from one state to the other. In the case of the F267J+ from open to closed or vice a versa, and the F268J+ changing the flow path from one direction to the other.

Pentair Single Seat Valves valves have only a few simple moving parts resulting in a very reliable valve in service.

Fields of application

Pentair Single Seat Valves are used to control process or CIP fluids. F267J+ for isolating, F268J+ for diverting or converging flows in the food processing, canneries, wineries, dairy, brewing, pharmaceutical, beverage and chemical industries. The valves can be manually operated or can be easily automated with the Figure 783 Easymind Electronic Control Top.

Technical data

Working temperature: -5 to +100°C (-5 to 120°C for static condition)

Sterilizing temperature: Up to 140°C for 30min (Steam for static condition)

Maximum pressure, valve body: 10bar fluid pressure

Maximum pressure, valve seat: See separate plug lifting chart

Minimum  pressure: Full vacuum

Operating air pressure: 4 to 8 bar max.

Air connections: R⅛” (BSP)

Surface finish: Internal < 0.8 Ra, external hairline / buffed

Length tolerance between ends: ±0.5mm ~ ±1.0mm

Parallelism or squareness of ends: ±0.5° or less

Technical Specification

Pentair Keystone Single Seat Valves F267J - F268J Technical Specifications

Parts List

No. Description Material Standards
1 Body 316L S/S, 304L S/S ASTM A276
2 Plug/shaft 316L S/S ASTM A276
3 Seat seal EPDM, NBR, PTFE, FKM FDA
4 Intermediate seal ring 316L S/S ASTM A276
5 Body seal EPDM, NBR, FKM FDA
6 Stem seal Santoprene® , EPDM, NBR, FKM FDA
7 Shaft bush PTFE, UHMWPE Commercial
8 Body clamp 304 CF8 S/S ASTM A743 CF8
9 Actuator assembly 304 S/S -
10 Sight housing 304 CF8 S/S ASTM A743 CF8

Dimensions (mm)

Size ØA x t   H H1   H3
Inch OD Metric Inch OD Metric ØD F267J+ F268J+ F267J+ F268J+ H2 Inch OD Metric H4
1” 025 25.4 x 1.6 29.5 x 1.6 102 311 351 8 14 231 55.0 54.0 46.0
1.5” 040 38.1 x 1.6 41.5 x 1.6 102 317 376 17 15 237 61.5 60.5 58.5
2” 050 50.8 x 1.6 53.5 x 1.6 102 357 432 26 24 261 77.0 76.0 75.0
2.5” 065 63.5 x 1.6 69.5 x 1.6 102 374 461 26 24 267 88.5 87.5 87.5
3” 080 76.2 x 1.6 84.5 x 1.6 141 485 587 38 36 356 109.0 108.0 102.0
4” 100 101.6 x 1.6 103.5 x 1.6 168 589 720 38 36 428 142.0 141.0 130.5
5” 125 129.0 x 2.0 130.0 x 2.0 219 576 762 50 48 497 156.0 155.0 185.0
6” 150 152.4 x 2.0 155.0 x 2.0 219 576 762 50 48 510 156.0 155.0 185.0

Note: Metric bodies are created from standard Inch OD bodies by fitting eccentric reducers. Santoprene® is the registered trademark of Exxon Mobil.

Working Principle

The F267J+ and F268J+ valves are operated by compressed air, via a linear pneumatic actuator, that can be supplied with or without spring return. The at rest position of the valve, although normally closed (down position), can also be provided in the normally open (up position), this is determined by the actuator mode being either Spring Extend (SE) or Spring Retract (SR) as selected at time of order.

The mode can also be easily changed on site by simply inverting the actuator assembly. (See separate Installation, Operation and Maintenance Instructions for details). When air pressure is applied to the cylinder, the valve plug moves through its entire stroke changing from one state to the other. In the case of the F267J+ from open to closed or vice versa, and the F268J+ changing the flow path from one direction to the other. These valves have only a few simple moving parts resulting in a very reliable valve in service.

Air Consumption For Single Acting Actuators (litres of free air)

Supply pressure bar/(psi) Valve size (Actuator size)
025-040

(100S)

050-065

(100)

080-100

(140)

*100

(170)

125-150

(200)

4.1 (60) 0.89 1.23 3.28 4.71 8.94
6.2 (90) 1.25 1.72 4.60 6.60 12.54
8.3 (120) 1.61 2.21 5.92 8.50 16.14

* (Option) 100 size valves can also be fitted with the Model 170 actuator as an option. This will boost the pressure holding power if required.

Manual Operator

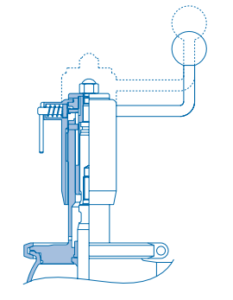

The manual operator replaces the air driven actuator, and is used where variable control of flow is required or automation is not possible. Flow is fully adjustable throughout the entire stroke of the valve. The manual operator comes equipped with a visual position indicator and a locking device that can be engaged at any position. The lever crank allows quick and easy operation of the valve.

Pentair Keystone Single Seat Valves F267J - F268J Manual Operator

3-Position Actuator

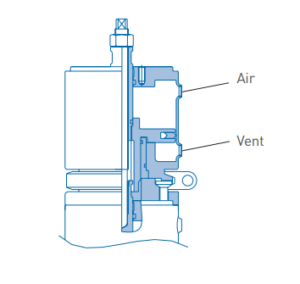

The 3-position actuator can be used for an adjusted flow control at any position throughout the valve’s entire stroke. For example on dosing or filling to give optional full flow or partial flows, for topping up, or varying flow between product or CIP duties.

Pentair Keystone Single Seat Valves F267J - F268J 3 Position Actuator

Booster Actuator

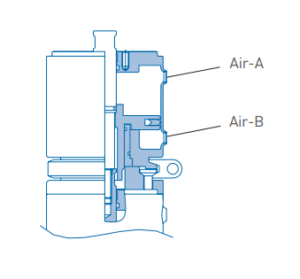

The booster actuator can be used where extra force is required to hold seal tightness under extra high line pressures, or for opening valves against high line pressures.

Pentair Keystone Single Seat Valves F267J - F268J Booster Actuator

Position Sensors

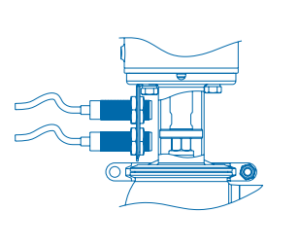

Standard Ø18mm barrel type proximity sensors can be provided as a kit, complete with mounting bracket and sensor target.

Pentair Keystone Single Seat Valves F267J - F268J Position Sensors

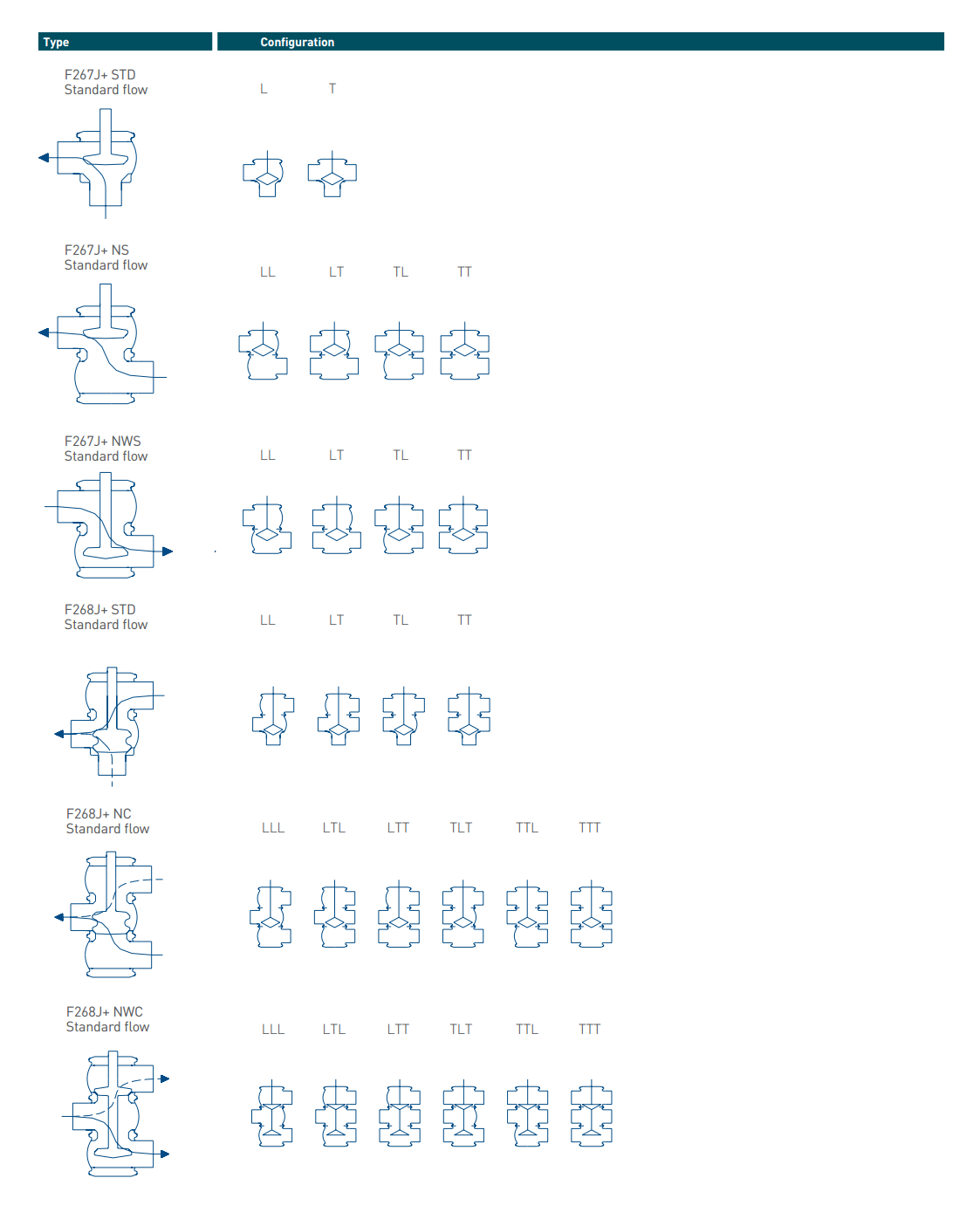

Valve Type

Pentair Keystone Single Seat Valves F267J - F268J Valve Type

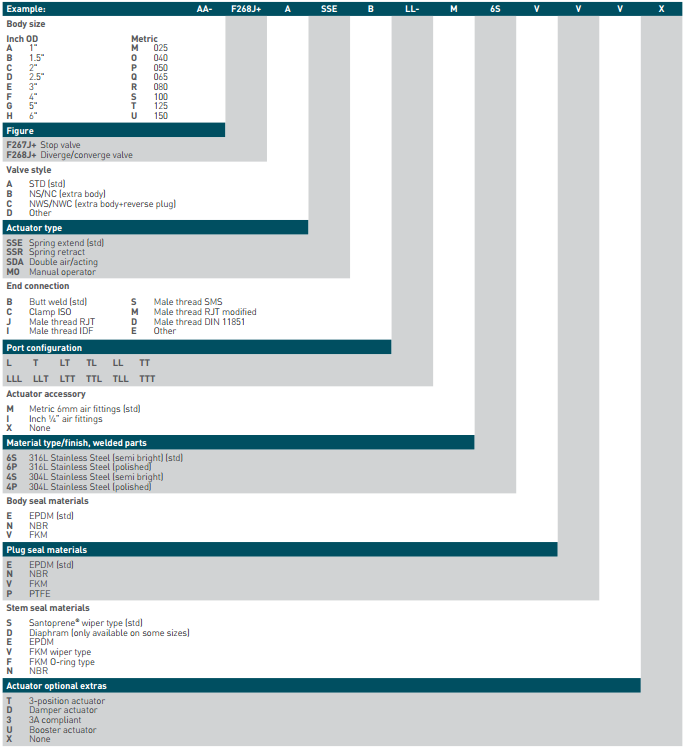

Selection Guide

Pentair Keystone Single Seat Valves F267J - F268J Selection Guide
