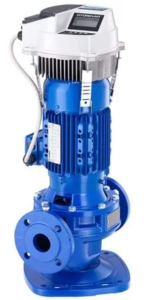

Lowara In-line pumps e-LNE

Features

Lowara, In-Line, e-LNE

  • Optimized for variable speed control
  • Compact footprint
  • Available with variable speed control:
    • Ultra premium efficinecy IES2 drive package
    • Hydrovar pump controller
  • Delivery: up to 900 m³/h
  • Head: up to 95 m

Robust design, different bearing frame sizes and stainless steel replaceable wear rings ensure a long service life. The e-LNE is also designed for easy maintenance and all service points are easy reachable to reduce downtime.

Versions

  • e-LNE: standard pump with IE3 motor
  • e-LNE..E: Variable speed Smart Pump with ultra premium efficiency IES2 drive package including a permanent magnet IE5 motor (up to 1,5 kW)
  • e-LNE..H: Variable speed pump with Hydrovar pump controller (up to 22 kW)

Specifications

General Specification
e-LNE In-Line Pumps
Delivery up to 900 m³/h
Head up to 95 m
Power Supply three-phase 50 and 60 Hz
Power from 0,25 kW up to 90 kW
Maximum Operating Pressure 16 bar
Temperature of Pumped Liquid from -25°C to +140°C
