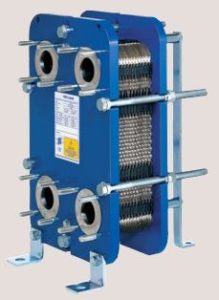

Alfa Laval IndustrialLine TS6 Gasketed Plate-and-Frame Heat Exchanger
Alfa Laval Industrial line is a wide product range that is used in virtually all types of industry. The relatively short plate makes this model suitable for duties with short temperature programs and when a low pressure drop is appreciated. A large range of plate and gasket types is available.
Applications
- Biotech and Pharmaceutical
- Chemicals
- Energy and Utilities
- Food and Beverages
- Home and Personal care
- HVAC and Refrigeration
- Machinery and Manufacturing
- Marine and Transportation
- Mining, Minerals and Pigments
- Pulp and Paper
- Semiconductor and Electronics
- Steel
- Water and Waste treatment
Benefits
- High energy efficiency – low operating cost
- Flexible configuration – heat transfer area can be modified
- Easy to install – compact design
- High serviceability – easy to open for inspection and cleaning and easy to clean by CIP
- Access to Alfa Laval’s global service network
Features
Every detail is carefully designed to ensure optimal performance, maximum uptime and easy maintenance. Selection of available features:
- Corner guided alignment system
- Chocolate pattern distribution area
- Clip-on gasket
- Leak chamber
- Fixed bolt head
- Key hole bolt opening
- Lifting lug
- Lining
- Lock washer
- Tightening bolt cover
Technical data
Plates
Name: TS6-M
Type: Single plate
Free channel, mm (inches): 4.0 (0.16)
Materials
Heat transfer plates: 316/316L, Ti
Field gaskets: NBR, EPDM, FKM
Flange connections Carbon steel, Metal lined: stainless steel, titanium
Frame and pressure plate: Carbon steel, epoxy painted
Other materials may be available on request. All option combinations may not be configurable.
Operational data
Frame, PV-code: FG, pvcALS
Max. design pressure (barg/psig): 16.0/232
Max. design temperature (°C/°F): 180/356
Frame, PV-code: FG, ASME
Max. design pressure (barg/psig): 14.3/207
Max. design temperature (°C/°F): 250/482
Frame, PV-code: FG, PED
Max. design pressure (barg/psig): 16.0/232
Max. design temperature (°C/°F): 180/356
Frame, PV-code: FD, ASME
Max. design pressure (barg/psig): 20.7/300
Max. design temperature (°C/°F): 250/482
Frame, PV-code: FD, PED
Max. design pressure (barg/psig): 25.0/362
Max. design temperature (°C/°F): 180/356
Extended pressure and temperature rating may be available on request.
Flange connections
FG, pvcALS: EN 1092-1 DN65 PN16
JIS B2220 10K 65A
JIS B2220 16K 65A
FG, ASME: ASME B16.5 Class150 NPS 3
FG, PED: EN 1092-1 DN65 PN16
ASME B16.5 Class 150 NPS 3
FD, pvcALS: EN 1092-1 DN65 PN25
JIS B2220 10K 65A
JIS B2220 20K 65A
FD, ASME: ASME B16.5 Class 300 NPS 3
FD, PED: EN 1092-1 DN65 PN25
ASME B16.5 Class 300 NPS 3
Standard EN1092-1 corresponds to GOST 12815-80 and GB/T 9115

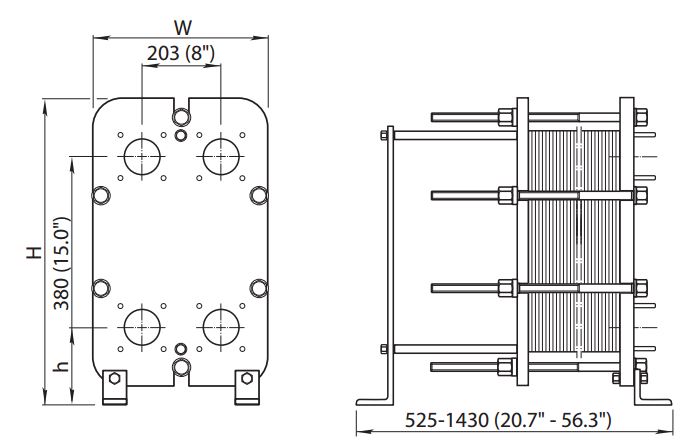

Dimensional drawing
Measurements mm (inches)
Type: TS6-FG
H: 704 (27.7″)
W: 400 (15.7″)
h: 188 (7.4″)
Type: TS6-FD
H: 704 (27.7″)
W: 410 (16.1″)
h: 188 (7.4″)
