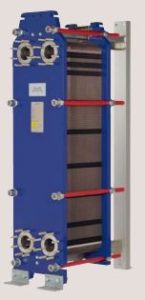

Alfa Laval IndustrialLine TL10 Gasketed Plate-and-Frame Heat Exchanger

Alfa Laval Industrial line is a wide product range that is used in virtually all types of industry. The relatively tall plate makes this model suitable for duties with long temperature programs and when high heat recovery is appreciated. A large range of plate and gasket types is available.

ApplicationsALFA LAVAL, IndustrialLine HEAT EXCHANGER, TL10

  • Biotech and Pharmaceutical
  • Chemicals
  • Energy and Utilities
  • Food and Beverages
  • Home and Personal care
  • HVAC and Refrigeration
  • Machinery and Manufacturing
  • Marine and Transportation
  • Mining, Minerals and Pigments
  • Pulp and Paper
  • Semiconductor and Electronics
  • Steel
  • Water and Waste treatment

Benefits

  • High energy efficiency – low operating cost
  • Flexible configuration – heat transfer area can be modified
  • Easy to install – compact design
  • High serviceability – easy to open for inspection and cleaning and easy to clean by CIP
  • Access to Alfa Laval’s global service network

Features

Every detail is carefully designed to ensure optimal performance, maximum uptime and easy maintenance. Selection of available features:

  • 5-point alignment system
  • Corner guided alignment system
  • Chocolate pattern distribution area
  • Glued gasket
  • Clip-on gasket
  • Leak chamber
  • Fixed bolt head
  • Key hole bolt opening
  • Lifting lug
  • Lining
  • Lock washer
  • Pressure plate roller
  • Tightening bolt cover

Technical data

Plates
Name: TL6-B
Type: Single plate
Free channel, mm (inches): 2.0 (0.079)

Name: TL10-P
Type: Single plate
Free channel, mm (inches): 3.0 (0.12)

Materials
Heat transfer plates: 304/304L, 316/316L, 254
C-276
Ni, Ti, TiPd

Field gaskets: NBR, EPDM, FKM, FEPM
Flange connections: Carbon steel, Metal lined: stainless steel, Alloy 254, Alloy C-276, nickel, titanium, Rubber lined: NBR, EPDM
Frame and pressure plate: Carbon steel, epoxy painted

Other materials may be available on request. All option combinations may not be configurable.

Operational data

Frame, PV-code: FM, pvcALS
Max. design pressure (barg/psig): 10.0/145
Max. design temperature (°C/°F): 180/356

Frame, PV-code: FG, pvcALS
Max. design pressure (barg/psig): 16.0/232
Max. design temperature (°C/°F): 180/356

Frame, PV-code: FG, ASME
Max. design pressure (barg/psig): 10.3/150
Max. design temperature (°C/°F): 250/482

Frame, PV-code: FG, PED
Max. design pressure (barg/psig): 16.0/232
Max. design temperature (°C/°F): 180/356

Frame, PV-code: FD, PED
Max. design pressure (barg/psig): 25.0/362
Max. design temperature (°C/°F): 180/356

Frame, PV-code: FS, ASME
Max. design pressure (barg/psig): 27.6/400
Max. design temperature (°C/°F): 250/482

Extended pressure and temperature rating may be available on request.

Flange connections
FM, pvcALS: EN 1092-1 DN100 PN10
ASME B16.5 Class 150 NPS 4
JIS B2220 10K 100A
FG, pvcALS: EN 1092-1 DN100 PN16
ASME B16.5 Class 150 NPS 4
JIS B2220 16K 100A
FG, ASME: ASME B16.5 Class150 NPS 4
FG, PED: EN 1092-1 DN100 PN16
ASME B16.5 Class 150 NPS 4
FD, pvcALS: EN 1092-1 DN100 PN25
ASME B16.5 Class 150 NPS 4
JIS B2220 20K 200A
FD, PED: EN 1092-1 DN100 PN25
ASME B16.5 Class 300 NPS 4
Special squared flange
FS, ASME: Special squared flange

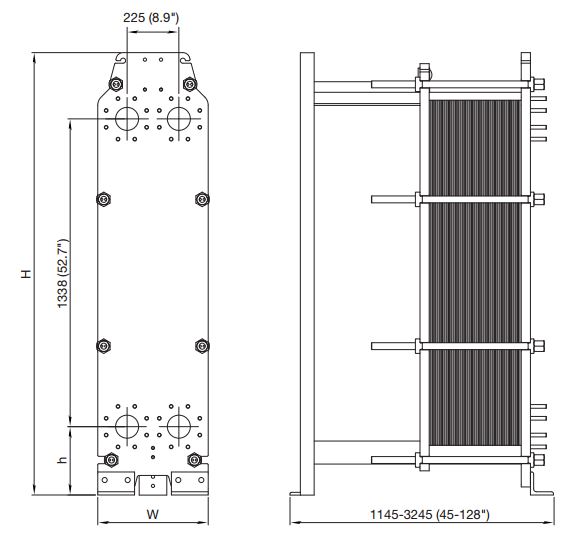

Dimensional drawing
Measurements mm (inches)

ALFA LAVAL, IndustrialLine HEAT EXCHANGER, TL10 drawing

Type: TL10-FM
H: 1885 (74.2″)
W: 480 (18.9″)
h: 255 (10.0″)

Type: TL10-FG
H: 1981 (78.0”)
W: 480 (18.9″)
h: 297 (11.7”)

Type: TL10-FD
H: 1981 (78.0”)
W: 480 (18.9″)
h: 297 (11.7”)

Type: TL10-FS
H: 1981 (78.0”)
W: 510 (20.1”)
h: 297 (11.7”)

The number of tightening bolts may vary depending on pressure rating.
