Alfa Laval IndustrialLine MA30 Gasketed Plate-and-Frame Heat Exchanger

Alfa Laval Industrial line is a wide product range that is used in virtually all types of industry. Designed for high throughput, this model delivers excellent thermal performance. A large selection of plate and gasket types is available.

ALFA LAVAL, IndustrialLine HEAT EXCHANGER, MA30Applications

  • Biotech and Pharmaceutical
  • Chemicals
  • Energy and Utilities
  • Food and Beverages
  • Home and Personal care
  • HVAC and Refrigeration
  • Machinery and Manufacturing
  • Marine and Transportation
  • Mining, Minerals and Pigments
  • Pulp and Paper
  • Semiconductor and Electronics
  • Steel
  • Water and Waste treatment


  • High energy efficiency – low operating cost
  • Flexible configuration – heat transfer area can be modified
  • Easy to install – compact design
  • High serviceability – easy to open for inspection and cleaning and easy to clean by CIP
  • Access to Alfa Laval’s global service network


Every detail is carefully designed to ensure optimal performance, maximum uptime and easy maintenance. Selection of available features:

  • 5-point alignment system
  • Reinforced hanger
  • Chocolate pattern distribution area
  • Glued gasket
  • Leak chamber
  • Bearing box
  • Fixed bolt head
  • Key hole bolt opening
  • Lifting lug
  • Lining
  • Lock washer
  • Pressure plate roller
  • Tightening bolt cover

Technical data

Name: MA30-M
Type: Single plate
Free channel, mm (inches): 5.0 (0.20)

Heat transfer plates: 316/316L, 254

Field gaskets: NBR, EPDM,  FKM
Flange Connections: Carbon steel
Frame and pressure plate: Carbon steel, epoxy painted

Other materials may be available on request. All option combinations may not be configurable.

Operational data

Frame, PV-code: FM, ASME
Max. design pressure (barg/psig): 6.9/100
Max. design temperature (°C/°F): 180/356

Frame, PV-code: FM, PED
Max. design pressure (barg/psig): 10.0/145
Max. design temperature (°C/°F): 160/320

Frame, PV-code: FG, ASME
Max. design pressure (barg/psig): 10.7/155
Max. design temperature (°C/°F): 250/482

Frame, PV-code: FG, PED
Max. design pressure (barg/psig): 16.0/232
Max. design temperature (°C/°F): 210/410

Frame, PV-code: FD, ASME
Max. design pressure (barg/psig): 21.5/312
Max. design temperature (°C/°F): 250/482

Frame, PV-code: FD, PED
Max. design pressure (barg/psig): 25.0/363
Max. design temperature (°C/°F): 180/356

Extended pressure and temperature rating may be available on request.

Flange connections

FM, ASME: ASME B16.5 Class 150 NPS 14/NPS 12
EN 1092-1 DN350/DN300 PN10
ASME B16.5 Class 150 NPS 14/NPS 12
FG, ASME: ASME B16.5 Class150 NPS 14/NPS 12
FG, PED: EN 1092-1 DN350/DN300 PN16
ASME B16.5 Class 150 NPS 14/NPS 12
FD, ASME: ASME B16.5 Class 300 NPS 14/NPS 12
FD, PED: EN 1092-1 DN350/DN300 PN25
ASME B16.5 Class 300 NPS 14/NPS 12

Standard EN1092-1 corresponds to GOST 12815-80 and GB/T 9115.

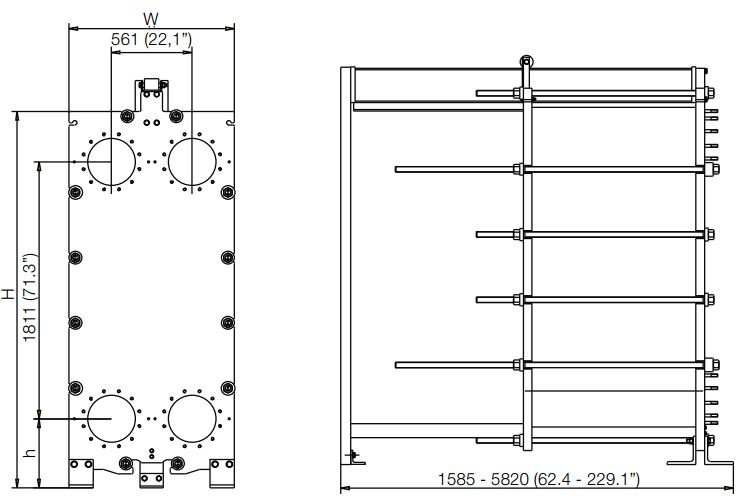

Dimensional drawing
Measurements mm (inches)

ALFA LAVAL, IndustrialLine HEAT EXCHANGER, MA30 drawing

Type: MA30-FM
H: 2882 (113.5”)
W: 1170 (46.1”)
h: 485 (19.1”)

Type: MA30-FG
H: 2918 (114.9”)
W: 1170 (46.1”)
h: 521 (20.5”)

Type: MA30-FD
H: 2918 (114.9”)
W: 1170 (46.1”)
h: 521 (20.5”)
