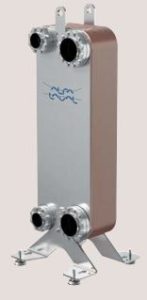

Alfa Laval CB Brazed PHE CB300AQ
Alfa Laval CBAQ is AHRI Certified® through the Liquid to Liquid Brazed & Fusion-bonded Plate Heat Exchangers (LLBF) Certification Program which ensures thermal performance in accordance with the product specifications. Alfa Laval CB brazed plate heat exchangers provide efficient heat transfer with a small footprint.
Applications
- HVAC heating and cooling
- Refrigeration
- Industrial heating and cooling
Benefits
- Compact
- Easy to install
- Self-cleaning
- Low level of service and maintenance is required
- All units are pressure and leak tested
- Gasket free
Design
The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life. Based on standard components and a modular concept, each unit is custom-built to meet the specific requirements of each
individual installation
Examples of connections
-
- Compact Flange
Technical Data
Standard materials
Cover plates: Stainless steel
Plates: Stainless steel
Brazing filler: Copper
Dimensions and weight1
A measure (mm): 11 + (2.62 * n)
A measure (inches): 0.43 + (0.1 * n)
Weight (kg)2: 21 + (1.26 * n)
Weight (lb)2: 46.3 + (2.78 * n)
1. n = number of plates
2. Excluding connections
Standard data
Volume per channel, litres (gal): (S1-S2): 0.69 (0.18)
(S3-S4): 0.58 (0.15)
Max. particle size, mm (inch): 1.8 (0.07)
Max. flowrate1 m3/h (gpm): 200 (880)
Flow direction: Parallel
Min. number of plates: 10
Max. number of plates: 250
1. Water at 5 m/s (16.4 ft/s) (connection velocity)

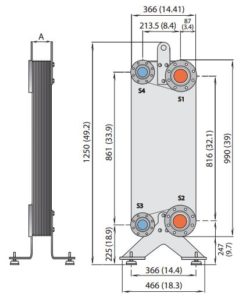

Dimensional drawing
Measurements in mm (inches)
