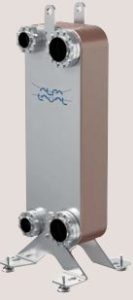

Alfa Laval CB Brazed PHE CB300 / CBH300

Alfa Laval CB brazed plate heat exchangers provide efficient heat transfer with a small footprint.

Applications

  • HVAC heating and cooling
  • Refrigeration
  • Oil cooling
  • Industrial heating and cooling

Benefits

  • Compact
  • Easy to install
  • Self-cleaning
  • Low level of service and maintenance is required
  • All units are pressure and leak tested
  • Gasket free

Design

The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life.

Different pressure ratings are available for different needs. Based on standard components and a modular concept, each unit is custom-built to meet the specific requirements of each individual installation.

Examples of connections

Technical Data

Standard materialsALFA LAVAL, CB HEAT EXCHANGER, CB300-CBH300
Cover plates: Stainless steel
Connections: Stainless steel
Plates: Stainless steel
Brazing filler: Copper

Dimensions and weight1
A measure (mm): 11 + (2.62 * n)
A measure (inches): 0.43 + (0.1 * n)
Weight (kg)2: 21 + (1.26 * n)
Weight (lb)2: 46.3 + (2.78 * n)
1. n = number of plates
2. Excluding connections

Standard data
Volume per channel, litres (gal): (S1-S2): 0.69 (0.178)
(S3-S4): 0.58 (0.150)
Max. particle size, mm (inch): 1.8 (0.071)
Max. flowrate1 m
3/h (gpm): 200 (880)
Flow direction: Parallel
Min. number of plates: 10
Max. number of plates: 250

1. Water at 5 m/s (16.4 ft/s) (connection velocity)

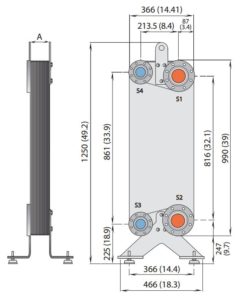

Dimensional drawing
Measurements in mm (inches)

ALFA LAVAL, CB HEAT EXCHANGER, CB300-CBH300 drawing
