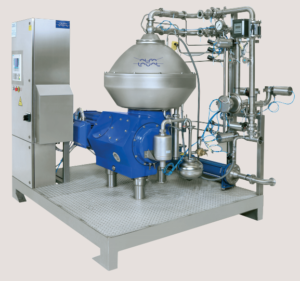

Alfa Laval Brew 301 Separator
Introduction
The use of separators in different brewery applications goes back to the beginning of the 1900’s. Based on the long-term cooperation with the brewery industry, Alfa Laval separators are specially designed for the requirements and demands of this industry.
Application
The Brew 301 is designed and optimized for green-beer, beer pre-clarification and polishing, with the target to clarify beer with the best performance and yield.
Benefits
- High separation efficiency
- No oxygen pick-up
- Gentle treatment of the product
- Low power consumption
- Complete skid mounted system handling both process and utility requirements.
- Robust and reliable design
Design
The system consists of a separator, a valve module with valves and components for routing of product and utilities in and out from the separator, as well as control and starter cabinet. All components are mounted on a common skid to enable plug-and-play installation.
All metallic parts in contact with the process liquid are made of stainless steel. Gaskets and seals in contact with the product are made of FDA approved material and are approved according to food regulations (EC1935/2004).
The separation system is designed for completely automated Cleaning in Place (CIP).
Scope of supply
Skid-mounted disc stack separator with valve module and control system, including:
- Main process valves of butterfly type
- Automatic flow regulating valve
- Counter pressure valve
- Flow meter of magnetic type
- Main motor starter with VFD from ABB
- Control panel with Siemens PLC and HMI
- Sight glasses for in- and outlet
- Samples valves for in- and outlet
Options
- Feed pump
- Capacity control: Automatic regulation of the flow based on measurements of the feed solid content by inlet turbidity
- Solids receiving unit: Consists of a collection device and a pump, to remove discharged solids
- Turbidity monitor for discharge triggering
Working principle
The product enters and leaves the separator via the valve module. The flow rate and the counter pressure in the outlet of the separator are controlled by the process liquid module.
Discharge of solids from the separator bowl is triggered by a turbidity meter, placed in the outlet of the system. The discharged solids are pumped away by the optional solids receiving unit.
The valve module also controls the utility liquids for the separator’s discharge system and for flushing and CIP.
Technical data
Performance data
Capacity | 250 hl/h (29,3 US gpm) |
Max. motor power | 35 kW (46,9 HP) |
Connections
Inlet | DN50: DIN 11851 Union |
Outlet | DN50: DIN 11851 Union |
Material data
Piping | DIN11850-2 (EN10357-A) AISI 304 |
Customer connection | DIN11851 Union |
Gaskets in system | EPDM product wetted parts |
Pipe frame | AISI 304 |
Cabinets | AISI 304 |
Weights (approximate)
System weight incl. separator, bowl and motor | 2380 kg (5247 lbs) |
Bowl weight | 300 kg (662 lbs) |

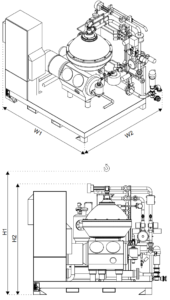

Dimensional drawing
Dimensions
H1 | Min. 2478 mm (8 ft 1 9/16 inch) |
H2 | 2024 mm (6 ft7 11/16 inch) |
W1 | 2530 mm (8 ft 3 5/8 inch) |
W2 | 1964 mm (6 ft 5 5/16 inch) |
