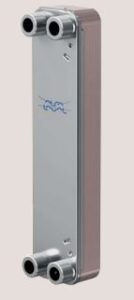

Alfa Laval CB Brazed PHE CB18 / CBH18
Alfa Laval CB brazed plate heat exchangers provide efficient heat transfer with a small footprint.
Examples of connections
- External Thread
- Internal Thread
- Soldering
Technical Data
Standard materials
Cover plates: Stainless steel
Connections: Stainless steel
Plates: Stainless steel
Brazing filler: Copper
Dimensions and weight1
A measure (mm): 7 + (2.16 * n)
A measure (inches): 0.28 + (0.09 * n)
Weight (kg)2: 0.22 + (0.07 * n)
Weight (lb)2: 0.48 + (0.15 * n)
1. n = number of plates
2. Excluding connections
Standard data
Volume per channel, litres (gal): A (S1-S2): 0.042 (0.011)
A (S3-S4): 0.035 (0.0089)
H: 0.038 (0.010)
Max. particle size, mm (inch): 1.1 (0.043)
Max. flowrate1 m3/h (gpm): 4.1 (18)
Flow direction: Parallel
Min. number of plates: 4
Max. number of plates: 60
1. Water at 5 m/s (16.4 ft/s) (connection velocity)

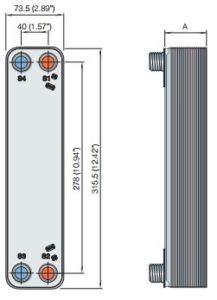

Dimensional drawing
Measurements in mm (inches)
