Alfa Laval Solid-C Centrifugal Pump

The SolidC pump is designed for standard duty applications, like pumping CIP (Cleaning In Place) solutions, utilities, water (processing, heating, cooling),  ashing machines, simple transport duty within working range. SolidC is suited for use in the food, dairy, beverage, personal care, pharmaceutical, light chemical and water industries.

Standard design

The SolidC pump is designed for CIP with emphasis on large internal radii and cleanable seals. SolidC has a stainless steel shroud for protection of the motor, and the complete unit is supported on four adjustable legs.

Shaft seals

The SolidC pump is equipped with either an external single or a flushed shaft seal. Both have stationary seal rings in acid-resistant steel AISI 329 with sealing surface in silicon carbide and rotating seal rings in carbon. The secondary seal of the flushed seal is a long lasting lip seal.

Technical data

Materials

Product wetted steel parts: . . . . . . . . W. 1.4404 (316L)
Other steel parts: . . . . . . . . . . . . . . Stainless steel
Finish: . . . . . . . . . . . . . . . . . . . . . Standard blasted
Product wetted seals: . . . . . . . . . . . EPDM

Connections for FSS: R 1/8″ (BSP) external thread.

Motor

Foot-flanged motor according to the IEC metric standard, 2 poles = 3000/3600 rpm. at 50/60 Hz, IP 55 (with drain hole with labyrinth plug), insulation class F.

Motor sizes

50 Hz: ………………… 1.1 – 22 kW
60 Hz: ………………… 1.3 – 25 kW

NOTE!

When used with frequency converter the 22 kW motor only has 20 kW effect.

Warranty

Extended 3-years warranty on the SolidC Centrifugal Pump range. The warranty covers all non-wear parts on the condition that genuine Alfa Laval Spare Parts are used.

Operating Data

Pressure

Max. inlet pressure: . . . . . . . . . . . . . 400 kPa (4 bar).

Temperature

Temperature range: . . . . . . . . . . . . . -10°C to +120°C (EPDM).

Flushed shaft seal (FSS):

Water pressure inlet: . . . . . . . . . . . . max. 100 kpa (1 bar).
Water consumption: . . . . . . . . . . . . 0.25 -0.5 l/min.

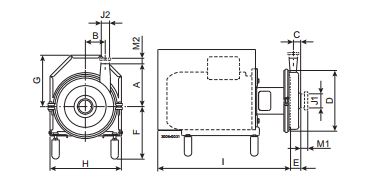

Dimensions (mm)

Pump Specific Measures

Motor Specific Measures

*Possible to reduce dimension F by min. mm for all pump models. For smaller models it will be possible to reduce dimension F even further.

Motor Overview

Dimensional data are based on 2 pole, WEGmotors.

Connections

* Other dimensions available on request
