Alfa Laval IndustrialLine TL3 Gasketed Plate-and-Frame Heat Exchanger

Alfa Laval Industrial line is a wide product range that is used in virtually all types of industry. The relatively tall plate makes this model suitable for duties with long temperature programs and when high heat recovery is appreciated. A large range of plate and gasket types is available. In addition to normal single plate configuration, this model is also available with double wall plates. Double wall plates are used as an extra precaution to avoid intermixing of fluids.

ApplicationsALFA LAVAL, IndustrialLine HEAT EXCHANGER, TL3

  • Biotech and Pharmaceutical
  • Chemicals
  • Energy and Utilities
  • Food and Beverages
  • Home and Personal care
  • HVAC and Refrigeration
  • Machinery and Manufacturing
  • Marine and Transportation
  • Mining, Minerals and Pigments
  • Pulp and Paper
  • Semiconductor and Electronics
  • Steel
  • Water and Waste treatment

Benefits

  • High energy efficiency – low operating cost
  • Flexible configuration – heat transfer area can be modified
  • Easy to install – compact design
  • High serviceability – easy to open for inspection and cleaning and easy to clean by CIP
  • Access to Alfa Laval’s global service network

Features

Every detail is carefully designed to ensure optimal performance, maximum uptime and easy maintenance. Selection of available features:

  • Corner guided alignment system
  • Clip-on gasket
  • Leak chamber
  • Fixed bolt head
  • Key hole bolt opening
  • Lifting lug
  • Lining
  • Lock washer
  • Tightening bolt cover

Technical data

Plates
Name: TL3-B
Type: Single plate
Free channel, mm (inches): 1.8 (0.07)

Name: TL3-P
Type: Single plate
Free channel, mm (inches): 3.0 (0.12)

Name: TL3-BD
Type: Double wall plate
Free channel, mm (inches): 1.8 (0.07)

Materials
Heat transfer plates: 304/304L, 316/316L, 254
Ti
Field gaskets: NBR, EPDM,  FKM
Pipe Connections: Stainless steel, titanium
Frame and pressure plate: Carbon steel, epoxy painted

Other materials may be available on request. All option combinations may not be configurable.

Operational data

Frame, PV-code: FG, ASME
Max. design pressure (barg/psig): 10.3/150
Max. design temperature (°C/°F): 180/356

Frame, PV-code: FG, PED
Max. design pressure (barg/psig): 16.0/232
Max. design temperature (°C/°F): 180/356

Extended pressure and temperature rating may be available on request.

Pipe connections
Threaded port: ISO 228 – G 1 1/4
External tapered threaded: ISO 7 – R 1 1/4
1 1/4 – 11.5 NPT

Other connection types may be available on request.

Dimensional drawing
Measurements mm (inches)

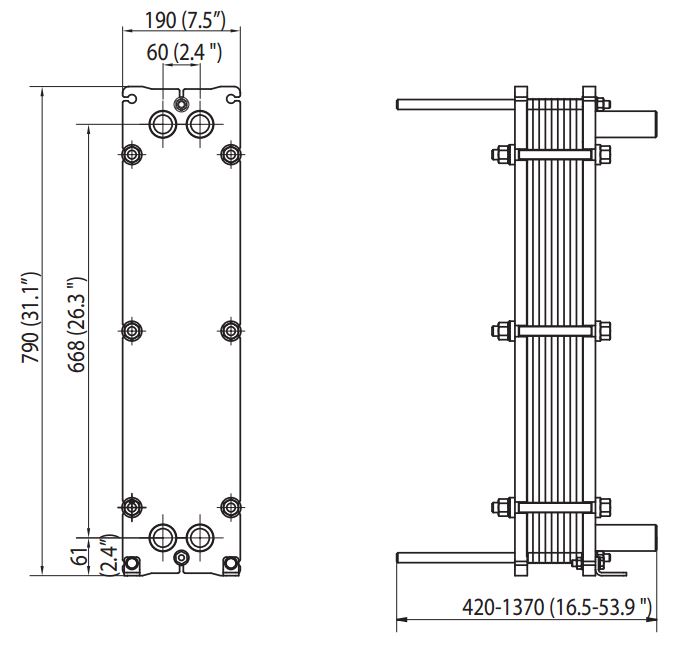

ALFA LAVAL, IndustrialLine HEAT EXCHANGER, TL3 drawing
