Alfa Laval IndustrialLine T8 Gasketed Plate-and-Frame Heat Exchanger

Alfa Laval Industrial line is a wide product range that is used in virtually all types of industry. Suitable for a wide range of applications, this is the smallest model in the industrial range of gasketed plate-and-frame heat exchangers.

Applications

Biotech and Pharmaceutical
Chemicals
Energy and Utilities
Food and Beverages
HVAC and Refrigeration
Machinery and Manufacturing
Marine and Transportation
Mining, Minerals and Pigments
Pulp and Paper
Semiconductor and Electronics
Steel

Benefits

High energy efficiency – low operating cost
Flexible configuration – heat transfer area can be modified
Easy to install – compact design
High serviceability – easy to open for inspection and cleaning and easy to clean by CIP
Access to Alfa Laval’s global service network

Features

Every detail is carefully designed to ensure optimal performance, maximum uptime and easy maintenance. Selection of available features:

Corner guided alignment system
CurveFlowTM distribution area
ClipGripTM gasket
Leak chamber
Fixed bolt head
Key hole bolt opening
Lifting lug
Lining
Lock washer
Tightening bolt cover

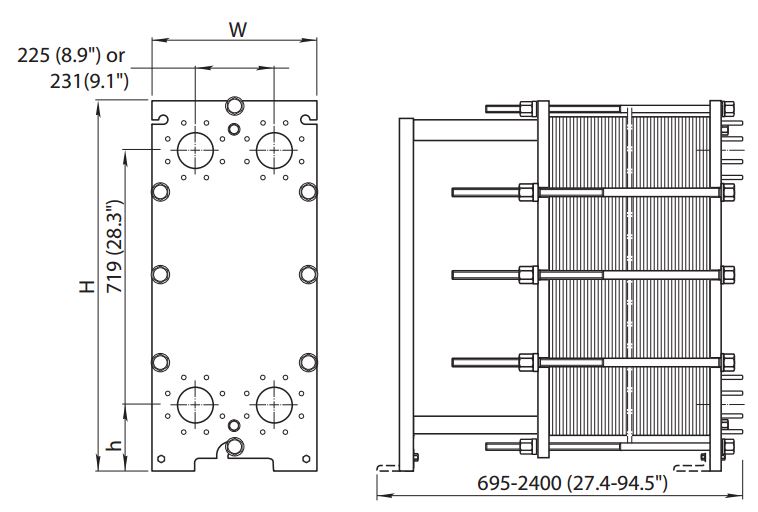

Technical data

Plates
Name: T8-B
Type: Single plate
Free channel, mm (inches): 2.3 (0.091)

Name: T8-M
Type: Single plate
Free channel, mm (inches): 3.9 (0.15)

Materials
Heat transfer plates: 304/304L, 316/316L
Ti
Field gaskets: NBR, EPDM
Flange connections: Metal lined: stainless steel, titanium
Rubber lined: NBR
Frame and pressure plate: Carbon steel, epoxy painted

Other materials may be available on request. All option combinations may not be configurable.

Operational data

Frame, PV-code: FM, pvcALS
Max. design pressure (barg/psig): 13.5/196
Max. design temperature (°C/°F): 180/356

Frame, PV-code: FM, PED
Max. design pressure (barg/psig): 13.0/188
Max. design temperature (°C/°F): 180/356

Frame, PV-code: FG, pvcALS
Max. design pressure (barg/psig): 15.5/225
Max. design temperature (°C/°F): 180/356

Frame, PV-code: FG, ASME
Max. design pressure (barg/psig): 10.3/150
Max. design temperature (°C/°F): 250/482

Frame, PV-code: FG, PED
Max. design pressure (barg/psig): 17.5/253
Max. design temperature (°C/°F): 180/356

Extended pressure and temperature rating may be available on request.

Flange connections
FM, pvcALS: EN 1092-1 DN80 PN10
ASME B16.5 Class 150 NPS 3
JIS B2220 10K 80A
FM, PED: EN 1092-1 DN80 PN10
ASME B16.5 Class 150 NPS 3
FG, pvcALS: EN 1092-1 DN80 PN10
EN 1092-1 DN80 PN16
ASME B16.5 Class 150 NPS 3
JIS B2220 10K 80A
JIS B2220 16K 80A
FG, ASME: ASME B16.5 Class150 NPS 3
FG, PED: EN 1092-1 DN80 PN16
ASME B16.5 Class 150 NPS 3
