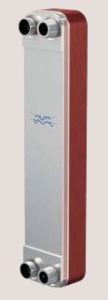

Alfa Laval CB Brazed PHE CBXP52

Brazed plate heat exchanger for extra high-pressure requirements. Alfa Laval CB brazed plate heat exchangers provide efficient heat transfer with a small footprint.

Applications

• Refrigeration
• Industrial heating and cooling

Benefits

• Compact
• Easy to install
• Self-cleaning
• Low level of service and maintenance is required
• All units are pressure and leak tested
• Gasket free

Design

The brazing material seals and holds the plates together at the contact points ensuring optimal heat transfer efficiency and pressure resistance. Using advanced design technologies and extensive verification guarantees the highest performance and longest possible service life.

The XP design is particularly suited for CO2 applications. The unit can be supplied with a refrigerant distribution system for optimal evaporator performance. Based on standard components and a modular concept, each unit is custom-built to meet the specific requirements of each individual installation.

Examples of connections

Technical Data

Standard materials
Cover plates: Stainless steel
Connections: Stainless steel
Plates: Stainless steel
Brazing filler: Copper

Dimensions and weight1
A measure (mm): 14 + (2.37 * n)
A measure (inches): 0.55 + (0.09 * n)
Weight (kg)2: 2.5 + (0.22 * n)
Weight (lb)2: 5.51 + (0.49 * n)
1. n = number of plates
2. Excluding connections

Standard data
Volume per channel, litres (gal): 0.095 (0.025
Max. particle size, mm (inch): 1.2 (0.05)
Max. flowrate1 m3/h (gpm): 14 (61.6)
Flow direction: Parallel
Min. number of plates: 6
Max. number of plates: 150
1. Water at 5 m/s (16.4 ft/s) (connection velocity)

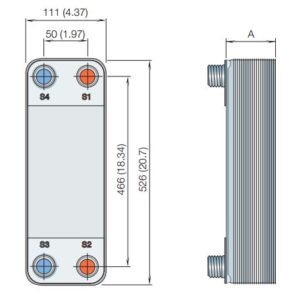

Dimensional drawing
Measurements in mm (inches)
